AC Centrifugal Blowers MB Series
MBS12-UA
Fan
| Product Classification | Product Name | List Price | List Price | Shipping Date |
|---|---|---|---|---|
| Fan | MBS12-UA | SGD 270 | USD 216 | 16 Working Days |
Included
- Centrifugal Blowers: Capacitor, Capacitor Cap, Operating Manual
Specifications
Characteristics
Characteristics Diagram
Dimensions
Dimensions (Body)
Exhaust Outlet and Intake Side Dimensions
Data Download
Other Specifications
General Specifications
| Item | Specifications | |
|---|---|---|
| Insulation Resistance | 100 MΩ or more when a 500 VDC megger is applied between the windings and the case after continuous operation under normal ambient temperature and humidity. | |
| Dielectric Strength | No abnormality is observed even with an application of 1.5 kVAC at 50 Hz between the coils and the case for 1 minute after continuous operation at normal ambient temperature and humidity. | |
| Temperature Rise | After continuous operation at normal ambient temperature and humidity, when the temperature becomes constant, the value measured by the thermometer method for the outer coating is max. 45 °C. | |
| Overheat Protective Device | Built-in Thermal Protector (Automatic Return Type) Open: 130±5 °C, Reset: 85±20 °C |
|
| Operating Environment | Ambient Temperature*1 | -10∼+50 °C (Non-freezing) |
| Intake Air Temperature (Temperature of the air to be inhaled) |
Listed in a separate part | |
| Ambient Humidity | 85 % max. (Non-condensing) | |
| Altitude | Less than 1000 m above sea level | |
| Atmosphere | No corrosive gases or dust Should not be exposed to water or oil. Cannot be used in a radioactive area, magnetic field, vacuum, or other special environments. |
|
| Storage Conditions*2 | Ambient Temperature | -10~+60 °C max. (Non-freezing) |
| Ambient Humidity | 85 % max. (Non-condensing) | |
| Altitude | Less than 3000 m above sea level | |
| Atmosphere | No corrosive gases or dust Should not be exposed to water or oil. Cannot be used in a radioactive area, magnetic field, vacuum, or other special environments. |
|
| Thermal Class | UL/CSA Standards, EN Standards: 130 (B) | |
| Degree of Protection | IP00 | |
- *1
- Cannot be used in a temperature-controlled environment at -10 °C max., such as in a freezer.
- *2
- The value for storage condition applies to short periods such as the period during transport.
Intake Air Temperature
| Intake Air Temperature | Operating Ambient Temperature |
|---|---|
| -10 °C or more +50 °C or less | -10∼+50 °C (Non-freezing) |
| +50 °C to +90 °C max. | -10~+40 °C (Non-freezing) |
Standards
Regulations and Standards Materials
Documents about compliance with regulations and standards can be downloaded from the "Data Download" tab on the product details page.
(The types of files available for download vary by product.)
Explanations of the Global Laws, Regulations and Standards can be found here.
Information about our compliance with regulations and standards for each of our product series can be found here.
Hazardous Substances
The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).

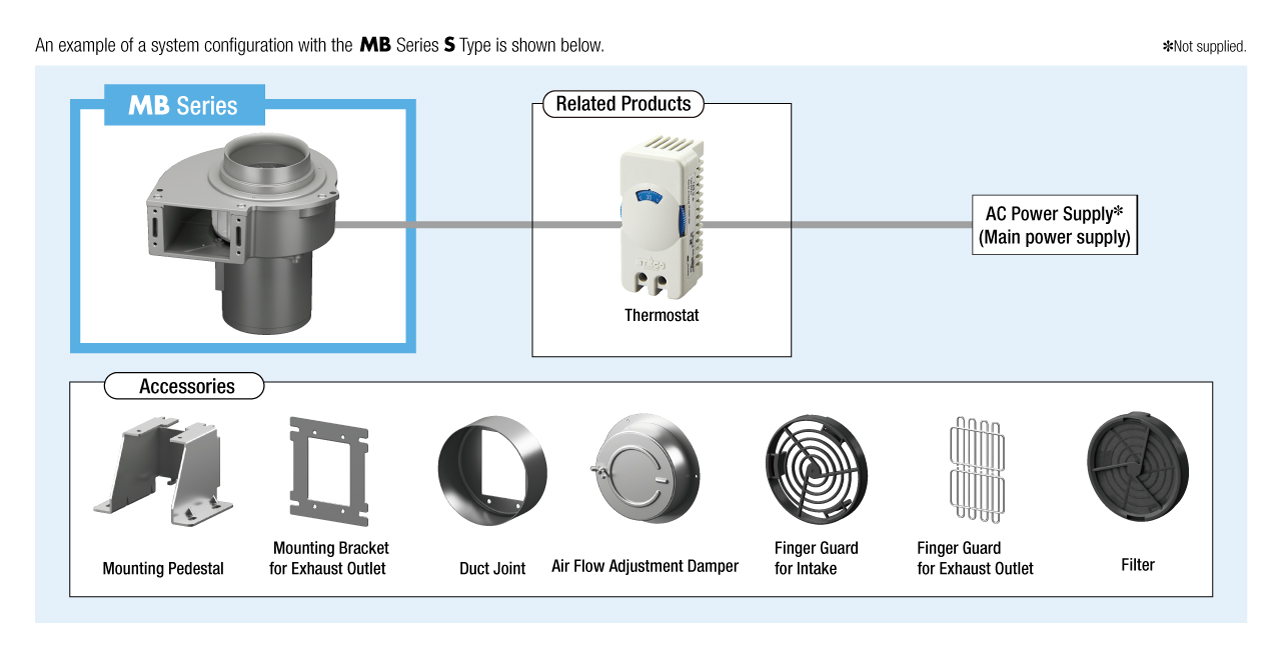

System Configuration
Related Products
Thermostat for Fan
| Products | Features | |
|---|---|---|
AM2-XA1
|
Features |
Automatically operates and stops fans in response to temperature changes in the equipment.
