Specifications

Characteristics

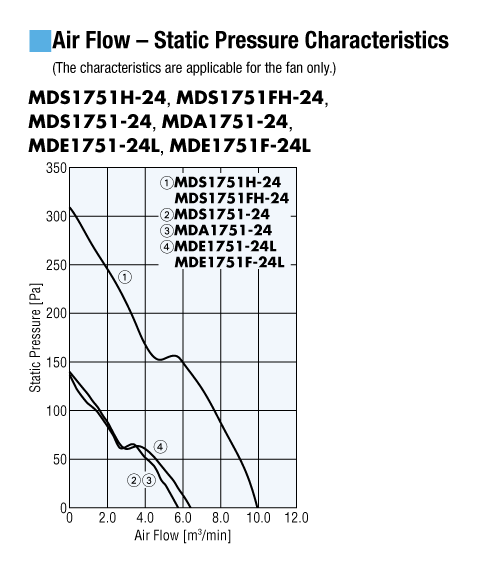

Air Flow - Static Pressure Characteristics

Air Flow - Static Pressure Characteristics

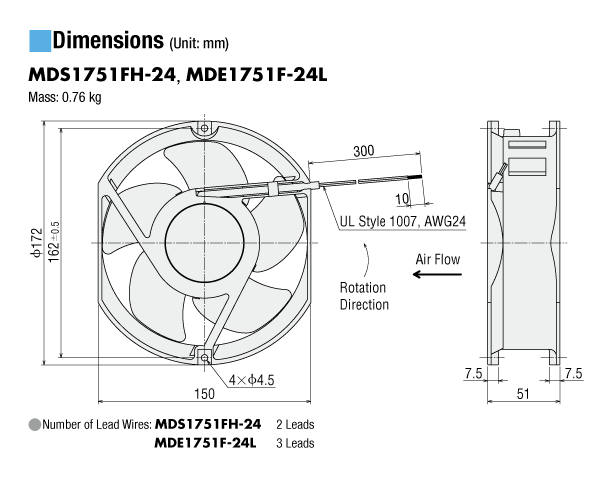

Dimensions

Dimensions (Body)

Dimensions (Body)

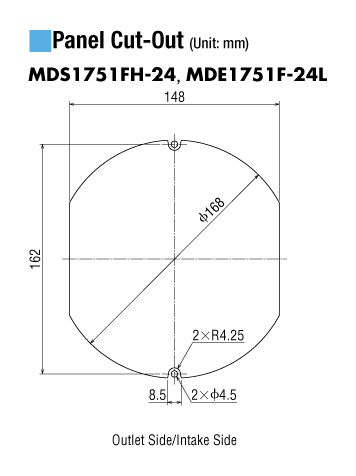

Panel Cut-Out

Panel Cut-Out

Data Download

Other Specifications

General Specifications

Item	Specifications
Insulation Resistance	Value measured between the windings and the case after continuous operation at normal ambient temperature and humidity. (For details, please refer to the table below.)
Dielectric Strength	After continuous operation at normal ambient temperature and humidity, no abnormality is observed when 50 Hz or 60 Hz 500 VAC is applied between the windings and the case for 1 minute.
Overheat Protective Device	Built-in burnout prevention circuit
Operating Ambient Temperature	Non-freezing/non-condensing. (For details, please refer to the table below.)
Operating Ambient Humidity	non-condensing (For details, please refer to the table below.)
Thermal Class	UL/CSA Standards: 105 (A), EN Standards: 120 (E)

Insulation resistance, operating ambient temperature, operating ambient humidity

Type	Product Name	Insulation Resistance	Operating Ambient Temperature	Operating Ambient Humidity
S Type	MDS625H-24	Min. 10 MΩ as a value measured by a 500 VDC megger	-20~+60 °C	85 % max.
	MDS825H-24
	MDS825YH-24			20~85 %
	MDS925H-24		-20~+70 °C	85 % max.
	MDS1238H-24
	MDS1751H-24
	MDS1751FH-24
	MDS420-12	Min. 10 MΩ as a value measured by a 500 VDC megger	-20~+70 °C	20~85 %
	MDS420-24
	MDS515-12
	MDS515-24
	MDS625-24
	MDS625Y-24
	MDS825-24
	MDS925-24
	MDS1225Y-24
	MDS1238-24			85 % max.
	MDS1451-24		-10~+60 °C
	MDS1751-24	Min. 10 MΩ as a value measured by a 250 VDC megger
A Type	MDA420-24L	Min. 10 MΩ as a value measured by a 500 VDC megger	-20~+70 °C	20~85 %
	MDA515-24L
	MDA625-24L
	MDA625Y-24L
	MDA825-24L
	MDA925-24L
	MDA1225-24L
	MDA1238-24L
	MDA1451-24L		-10~+60 °C	85 % max.
	MDA625-24	Min. 10 MΩ as a value measured by a 250 VDC megger	-10~+60 °C	85 % max.
	MDA825-24
	MDA925-24
	MDA1225-24
	MDA1238-24	Min. 10 MΩ as a value measured by a 500 VDC megger	-20~+70 °C
	MDA1451-24		-10~+60 °C
	MDA1751-24
E Type	MDE625-24L	Min. 10 MΩ as a value measured by a 500 VDC megger	-20~+70 °C	85 % max.
	MDE825Y-24L			20~85 %
	MDE925Y-24L
	MDE1225-24L	Min. 10 MΩ as a value measured by a 250 VDC megger	-10~+60 °C	85 % max.
	MDE1238Y-24L	Min. 10 MΩ as a value measured by a 500 VDC megger	-20~+70 °C	20~85 %
	MDE1451-24L2		-10~+60 °C	85 % max.
	MDE1751-24L		-20~+70 °C
	MDE1751F-24L
V Type	MDV420-24S	Min. 10 MΩ as a value measured by a 500 VDC megger	-20~+70 °C	20~85 %
	MDV515-24S
	MDV625-24S			85 % max.
	MDV825-24S
	MDV825Y-24S			20~85 %
	MDV925-24S			85 % max.
	MDV1225-24S			20~85 %
	MDV1238-24S			85 % max.
P Type	MDP825-24L	Min. 10 MΩ as a value measured by a 500 VDC megger	-20~+70 °C	85 % max.
	MDP925-24L
	MDP925Y-24L			20~85 %
	MDP1238-24L			85 % max.

Stall Alarm Specifications

If the cooling fans stop rotating while power is being supplied, an alarm signal is output.

Alarm Specifications

Alarm Activation Speed	When locked
Output Mode	Open-collector output
Output Condition	Operation: L level (Internal transistor ON) When Locked: H level (Internal transistor OFF)
Maximum Rating	Maximum Applied Voltage: 27.6 VDC or less *30 VDC or less for MDA625Y-24L Maximum Inflow Current: 5 mA or less
Delay Function	None (To avoid alarm detection when the cooling fans start, an external delay circuit is required. The delay time should be 1 second min.)

Alarm Output Circuit Connection Example

Standards

Regulations and Standards Materials

Documents about compliance with regulations and standards can be downloaded from the "Data Download" tab on the product details page.
(The types of files available for download vary by product.)

Explanations of the Global Laws, Regulations and Standards can be found here.

Information about our compliance with regulations and standards for each of our product series can be found here.

Hazardous Substances

The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).
