Mounting Bracket Mounting Brackets for Circuit Products
MAFP06W-4
Mounting Brackets for Circuit Products
| Product Classification | Product Name | List Price | List Price | Shipping Date |
|---|---|---|---|---|
| Mounting Brackets for Circuit Products | MAFP06W-4 | SGD 59 | USD 47 | 11 Working Days |

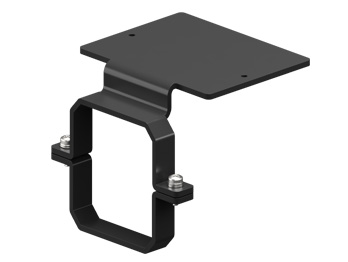

| Description | This is a metal fitting that attaches the control circuit to the side of the motor. Applicable products (control circuit): AZ series mini driver (excluding AZD-KR2D) Applicable products (motor): AZ series connector type, mounting angle dimension 42 mm (excluding FC geared type) Note: Pay attention to the bending radius and cable Length of the connection cable. In addition, for cables with a Length of 0.2 m, use the cable with the pull-out direction facing away from the output shaft. |
|---|
Included
- Mounting Brackets for Circuit Products: None (The customer must provide the screws used to fasten the circuit product to the mounting bracket.)
Specifications

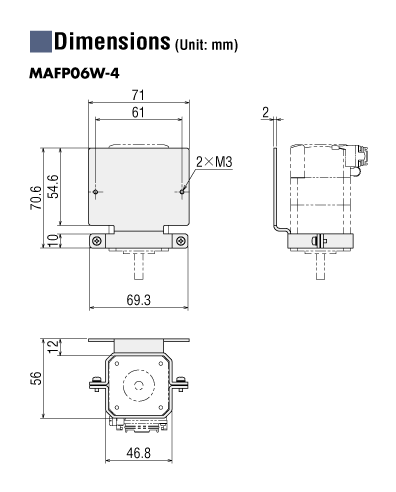

Dimensions
Data Download
Standards
Hazardous Substances
The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).
