Electric Linear Slides EZS Series
EZS4R-E015-AZAC-2
Actuator/Control Circuit
| Product Classification | Product Name | List Price | List Price | Shipping Date |
|---|---|---|---|---|
| Actuator / Control Circuit | EZS4R-E015-AZAC-2 | - | - | Discontinued Product (31.3.2023 discontinued) |
Included
- Actuator, Circuit, Cable for motor (2 m), Encoder Connection Cable (2 m), Main Power Supply/Regeneration Resistor Connector (CN4), I/O Signal Connector (CN5), Connector for 24 VDC Power Supply input · Electromagnetic Brake Connector · Regeneration Unit Thermal Input · power removal signal input (CN1), Connector Wiring Lever
Specifications

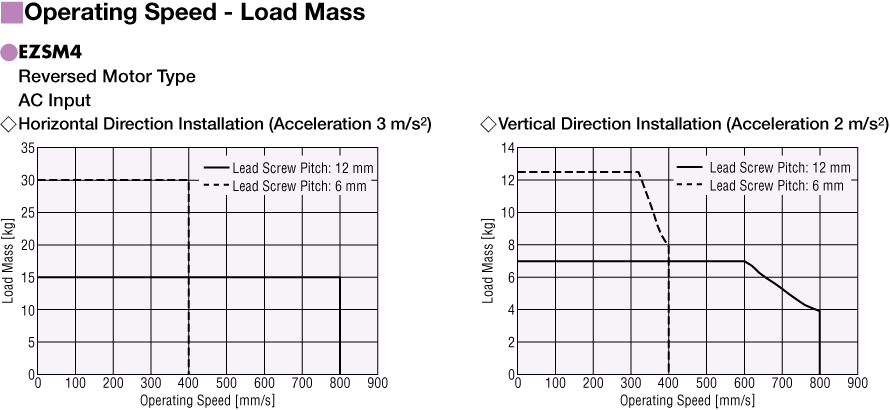

Characteristics

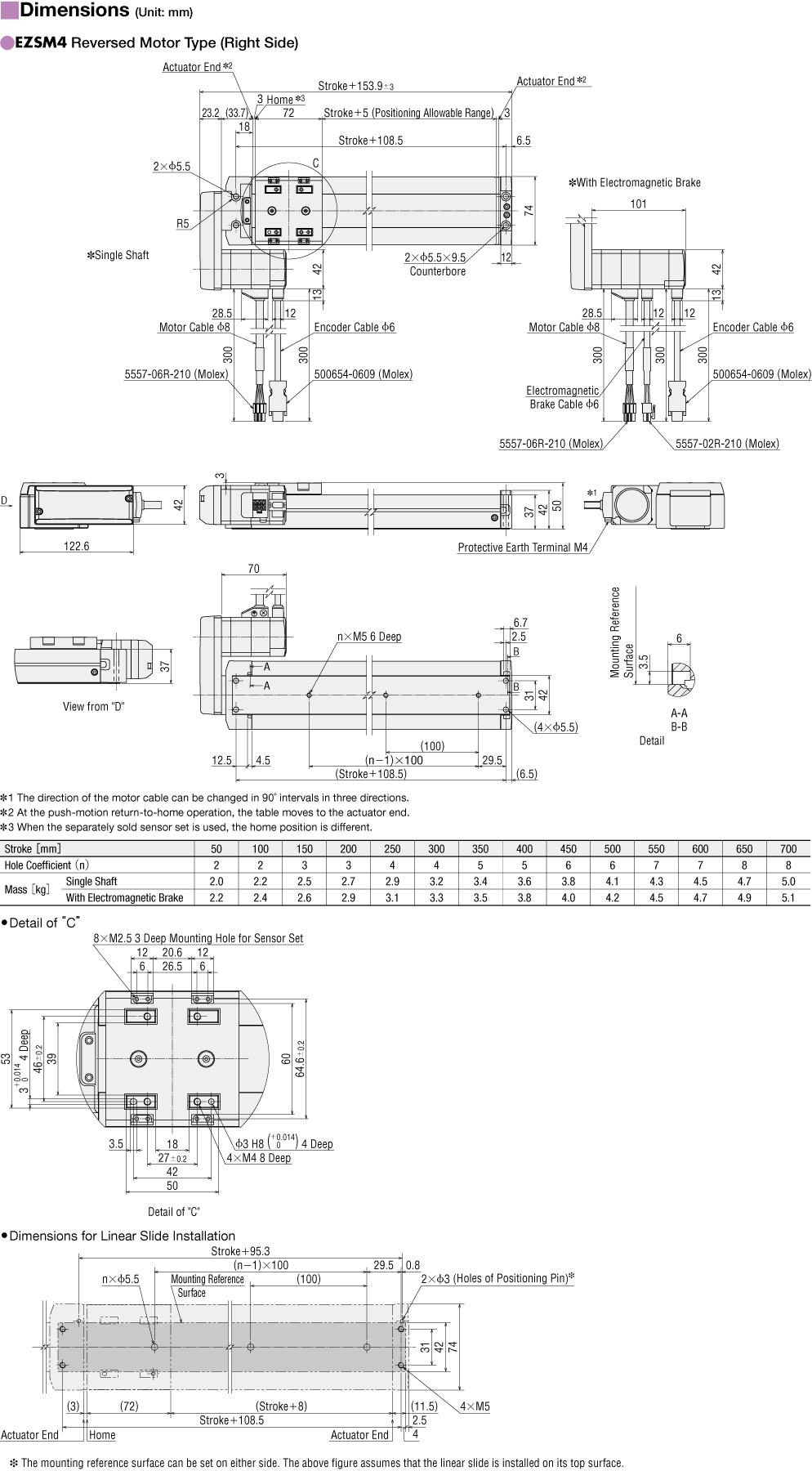

Dimensions
Other Specifications
General Specifications (Motor)
| Item | AC Input | DC Input | |
|---|---|---|---|
| Thermal Class | 130(B) [UL/CSA is certified at 105 (A).] |
||
| Insulation Resistance |
100 MΩ or more when a 500 VDC megger is applied between the following places:
|
||
| Dielectric Strength |
Sufficient to withstand the following for 1 minute.
|
Sufficient to withstand the following for 1 minute.
|
|
| Operating Environment (When operating) |
Ambient Temperature | 0~+40 °C (Non-freezing)*3 | |
| Ambient Humidity | 85 % max. (Non-condensing) | ||
| Atmosphere | No corrosive gases or dust. No exposure to water, oil or other liquids. | ||
| Degree of Protection*2 | IP66 (Except for mounting surface and connector parts) | ||
| Multi-rotation detection range in a de-energized state |
± 900 revolutions (1800 revolutions) | ||
- *1
- (Only for types with electromagnetic brake)
- *2
- Motor only. The degree of protection of the electric linear slide is IP20.
- *3
- According to Oriental Motor’s measurement conditions.
Note
- Disconnect the motor and driver when measuring insulation resistance, or conducting a dielectric strength test.
Also, do not perform these tests on the ABZO sensor part of the motor.
Driver Circuit Specifications
| Classification | Name | Built-In Controller Type |
Pulse input Type |
|
|---|---|---|---|---|
| I/O Function |
Pulse Input | − | Maximum Input Pulse Frequency: Line driver output from host controller: 1 MHz (at 50 % duty) Open-Collector Output by Host Controller: 250 kHz (at 50 % duty) Negative Logic Pulse Input (Initial value) |
|
| Direct Input | Input Points: 10 points | Input Points: 6 points | ||
| Direct Output | Output Points: 6 points | |||
| RS-485 Communication | Network Input | 16 points | − | |
| Network Output | 16 points | − | ||
Driver Circuit General Specifications
| Built-in Controller Type | Pulse input type | ||
|---|---|---|---|
| Insulation Resistance |
100 MΩ or more when a 500 VDC megger is applied between the following places.
|
||
| Dielectric Strength |
Sufficient to withstand the following for 1 minute:
|
||
| Operating Environment (When operating) |
Ambient Temperature | 0~+55 °C (Non-freezing)* | |
| Ambient Humidity | 85 % max. (Non-condensing) | ||
| Atmosphere | No corrosive gases or dust. No exposure to water, oil or other liquids. | ||
| Degree of Protection | IP10 | IP20 | |
| Multi-Rotation Detection Range in Power OFF State | ± 900 revolutions (1800 revolutions) | ||
- *When installing a heat sink equivalent to an aluminum plate min. 200×200 mm, thickness 2 mm
Note
- Disconnect the motor and driver when measuring insulation resistance or conducting a dielectric strength test.
Travel Direction
At the time of shipment, the travel direction of the table is set as follows.
Standards
Regulations and Standards Materials
Documents about compliance with regulations and standards can be downloaded from the "Data Download" tab on the product details page.
(The types of files available for download vary by product.)
Explanations of the Global Laws, Regulations and Standards can be found here.
Information about our compliance with regulations and standards for each of our product series can be found here.
Hazardous Substances
The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).
System Configuration
Cables and Accessories
