ES01/ES02

ES01

This product is currently no longer available for sale

Product Classification	Product Name	List Price	List Price	Shipping Date
Control Circuit	ES01	SGD 158	USD 126	Discontinued Product (31.3.2021 discontinued)

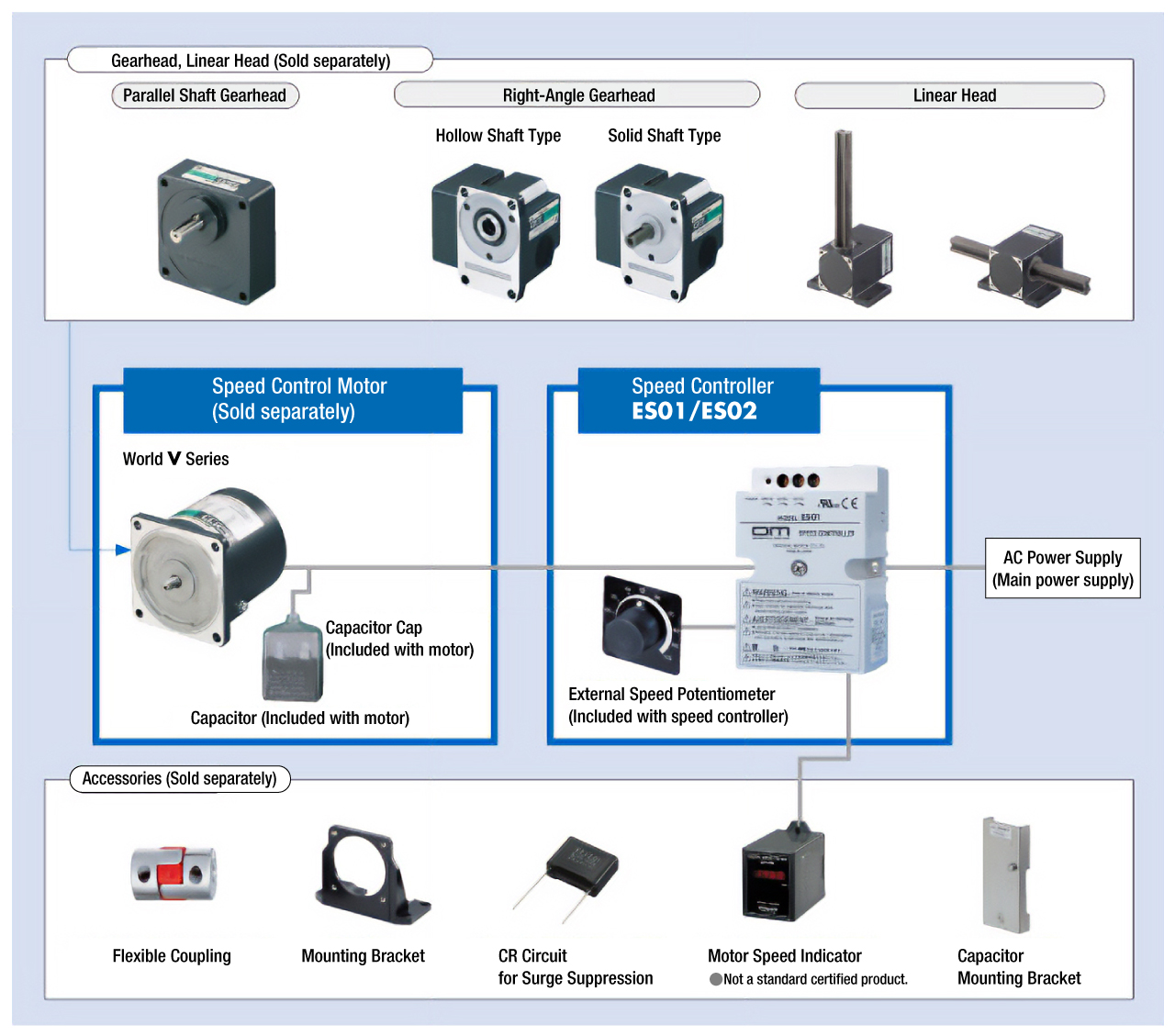

• This product is a speed controller only. A motor and gearhead is required for driving.

Specifications

Speed Controller Product Name	ES01	ES02
Power Supply Voltage	Single-phase 100/115 VAC±10 %	Single-phase 200-230 VAC±10%
Power Supply Frequency	50/60 Hz
Applicable Speed Controls Motor Output Power	6 W, 15 W, 25 W, 40 W, 60 W, 90 W
Variable Speed Range	50 Hz: 90~1400 r/min 60 Hz: 90~1600 r/min
Functions	Speed control, instantaneous stop, slow start and slow down
Insulation Resistance	The value measured with a 500 VDC megger between the case and pins and between FG terminal and AC input terminal at normal ambient temperature and humidity is min. 100 MΩ.
Dielectric Strength	No abnormality is observed even if 50 Hz or 60 Hz, 1.5 kVAC is applied between FG terminal and AC input terminal for 1 minute at normal ambient temperature and humidity. No abnormality is observed when 50 Hz or 60 Hz, 3.0 kVAC is applied between the case and pins for 1 minute.
Operating Ambient Temperature	0∼+40 °C (Non-freezing)
Operating Ambient Humidity	85 % max. (Non-condensing)
Degree of Protection	IP20 (when cover is installed)

Note

Multi-motor control is not possible.
When an instantaneous stop is performed, a large braking current flows through the motor.
