Specifications

Characteristics

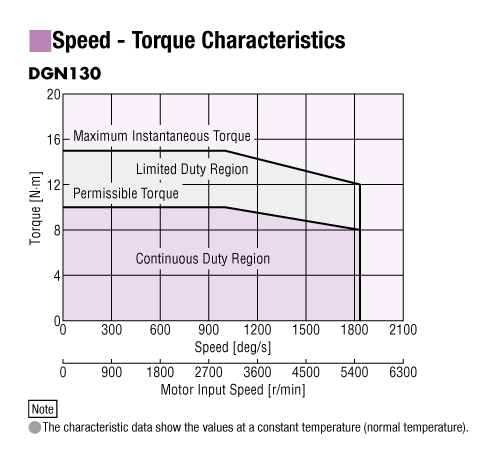

Speed - Torque Characteristics

Speed - Torque Characteristics

Mechanical Precision (At no load)

Mechanical Precision (At no load)

Displacement by Load Moment (Reference value)

Displacement by Load Moment (Reference value)

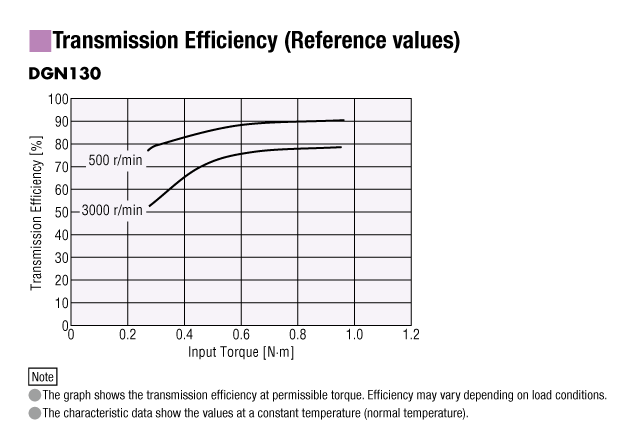

Transmission Efficiency (Reference Values)

Transmission Efficiency (Reference Values)

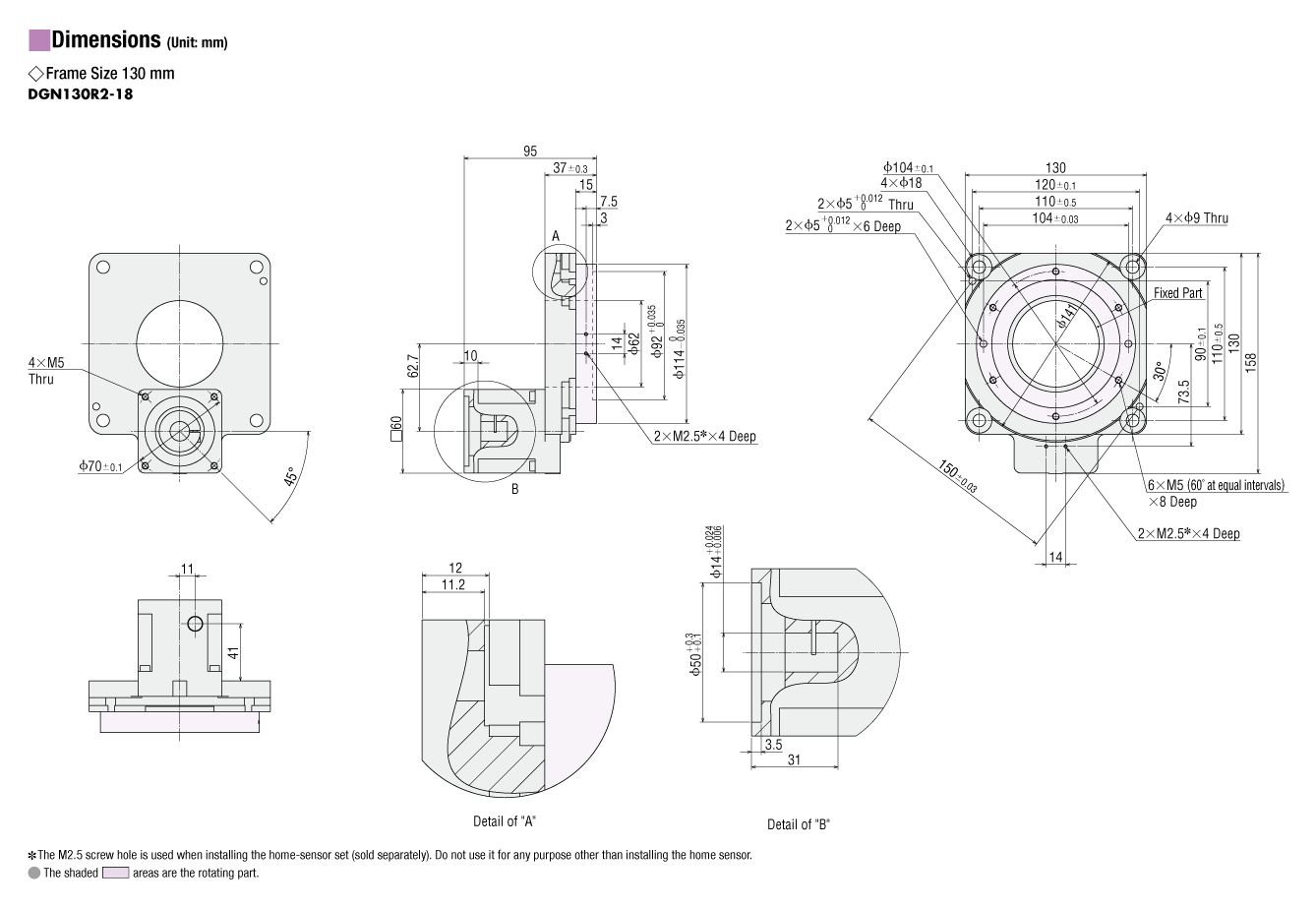

Dimensions

Actuator

Actuator

Data Download

Other Specifications

General Specifications (Actuator)

Item		Specifications
Operating Environment (In operation)	Ambient Temperature	0~+40 °C (Non-freezing)*
	Ambient Humidity	85 % max. (Non-condensing)
	Atmosphere	No corrosive gases or dust. No exposure to water, oil or other liquids.

• *According to Oriental Motor’s measurement conditions

Rotation Direction

The table rotates in the opposite direction of the output shaft’s rotation direction.

Standards

Hazardous Substances

The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).

Cables and Accessories
