Hollow Rotary Actuators DGII Series
DGM130R-AZAC
Actuator
| Product Classification | Product Name | List Price | List Price | Shipping Date |
|---|---|---|---|---|
| Actuator | DGM130R-AZAC | SGD 2,406 | USD 1,925 | 3 Working Days |
• Specifications and various data of combination products may be shown on the combination product page. Please check the page of the combination product.
Included
- Actuator: None
Specifications

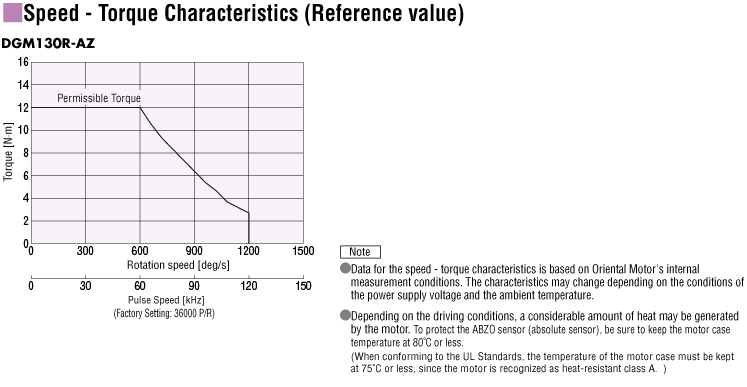

Characteristics

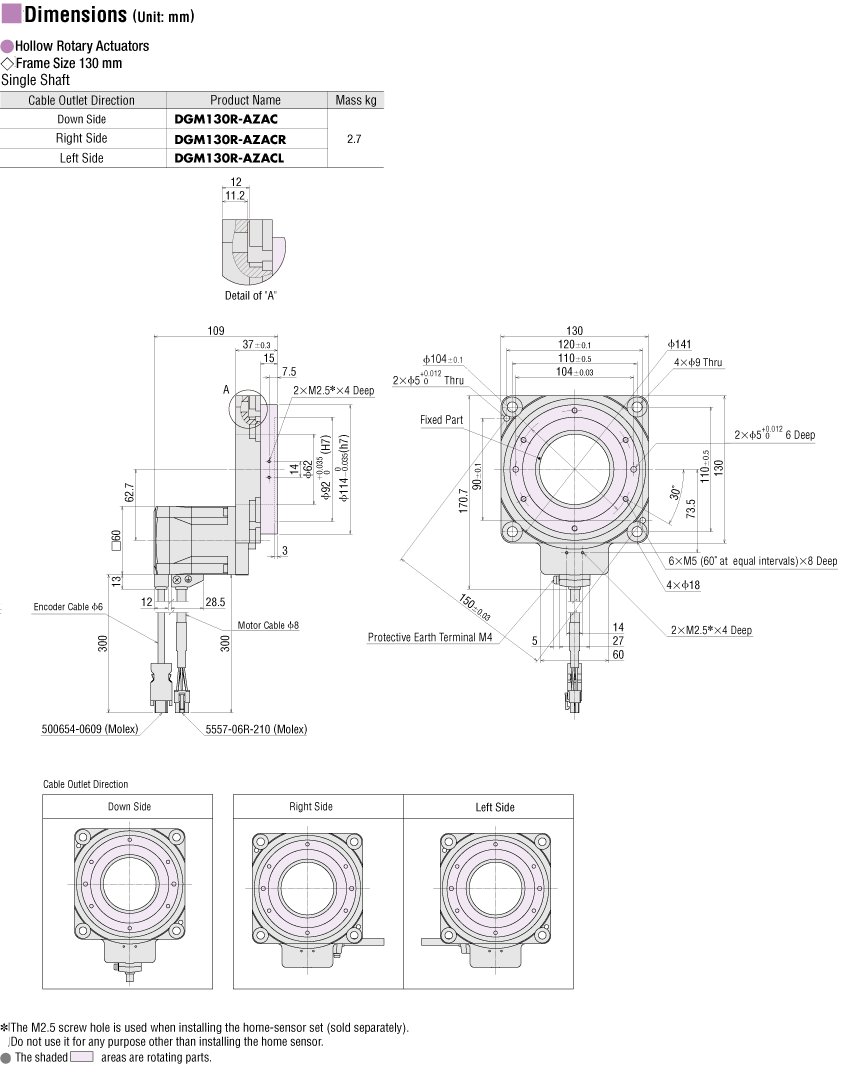

Dimensions
Data Download
Other Specifications
Actuator General Specifications
| Installed Motor | AZ Series | |
|---|---|---|
| Operating Environment (When operating) |
Ambient Temperature | 0∼+40°C (Non-freezing)∗ |
| Ambient Humidity | 85% max. (Non-condensing) | |
| Atmosphere | No corrosive gases or dust. No exposure to water, oil or other liquids. | |
| Multi-Rotation Detection Range in Power OFF State (Motor output shaft) |
±900 revolutions (1800 revolutions) | |
- ∗
- According to Oriental Motor’s measurement conditions
Rotation Direction
Indicates the rotation direction when viewed from the output table side.
The illustration shows the motor vertical mounting. The rotation direction is also the same for the motor horizontal mounting.
Standards
Regulations and Standards Materials
Documents about compliance with regulations and standards can be downloaded from the "Data Download" tab on the product details page.
(The types of files available for download vary by product.)
Explanations of the Global Laws, Regulations and Standards can be found here.
Information about our compliance with regulations and standards for each of our product series can be found here.
Hazardous Substances
The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).
