Specifications

Characteristics

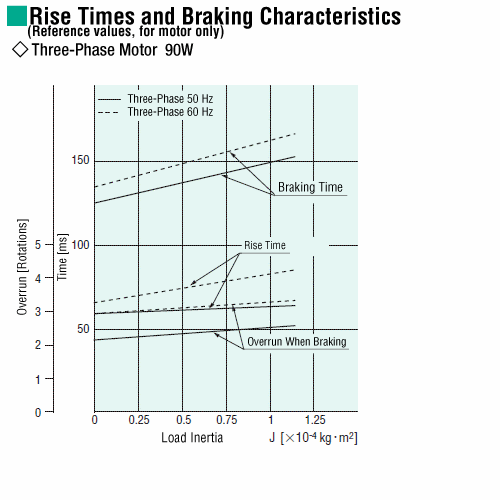

Starting and Braking Characteristics (Reference values)

Starting and Braking Characteristics (Reference values)

Data Download

Other Specifications

General Specifications

Item	Specifications
Insulation Resistance	After rated operation at normal ambient temperature and humidity, the measurement between the coils and the case is 100 MΩ min. using a 500 VDC megger.
Dielectric Strength	No abnormality is observed even with an application of 1.5 kVAC at 50 Hz between the coils and the case for 1 minute after rated operation at normal ambient temperature and humidity.
Temperature Rise	A gearhead or equivalent heat sink* is connected to the motor and the winding temperature rise is measured at 80 °C max. using the resistance change method after continuous rated operation under normal ambient temperature and humidity. (Three-Phase type is 70 °C max.)
Thermal Class	130 (B)
Overheat Protective Device	6 W Type: Impedance protection Other Types: Built-in thermal protector (automatic return type) Open: 130 ± 5 °C, Return: 85 ± 20 °C
Operating Ambient Temperature	Single-phase 100 V, single-phase 200 V, three-phase 200 V: -10~+50 °C (Non-freezing) Other voltages: -10~+40 °C (Non-freezing)
Operating Ambient Humidity	85 % max. (Non-condensing)
Degree of Protection	6 W, 15 W, 25 W, 40 W: IP20 60 W, 90 W: IP40

• *Heat sink size: (Material: Aluminum)

Motor Type (Output power)	Size (mm)	Thickness (mm)
6 W Type	115 x 115	5
15 W Type	125 x 125
25 W Type	135 x 135
40 W Type	165 x 165
60 W and 90 W Types	200 x 200

Cables and Accessories
