General Specifications

Item	Specifications
Insulation Resistance	After rated operation at normal ambient temperature and humidity, the measurement between the coils and the case is 100 MΩ min. using a 500 VDC megger.
Dielectric Strength	After continuous rated operation at normal ambient temperature and humidity, no abnormalities were observed even with an application of 1.5 kV at 50 Hz or 60 Hz between the coils and the case for 1 minute.
Temperature Rise	The gearhead is mounted on the motor, and after rated operation at normal ambient temperature and humidity, the resistance change method is used to measure the winding temperature rise, and the value is 80 °C max.
Thermal Class	130 (B)
Thermal Protector for Signals	Built-In (Automatic return type) Open: 130 ± 5 °C, Reset: 85 ± 20 °C Contact specification Rated Operating Voltage 230 VAC Rated Conduction Current 5 A Initial Contact Resistance 50 mΩ max. (24 VDC 5 mA) Dielectric Strength No abnormality is observed when 50 Hz or 60 Hz 3.0 kVAC is applied between the motor winding and the thermal protector lead wire core for 1 minute.
Operating Ambient Temperature	-10~+50 °C (-10~+40 °C for single-phase 110/115 VAC, single-phase 220/230 VAC, three-phase 220/230 V)
Operating Ambient Humidity	85 % max. (Non-condensing)
Degree of Protection	Lead Wire Type: IP20 Terminal Box Type: IP54

Standards

Regulations and Standards Materials

Documents about compliance with regulations and standards can be downloaded from the "Data Download" tab on the product details page.
(The types of files available for download vary by product.)

Explanations of the Global Laws, Regulations and Standards can be foundhere.

Information about our compliance with safety standards for each of our product models can be found here.

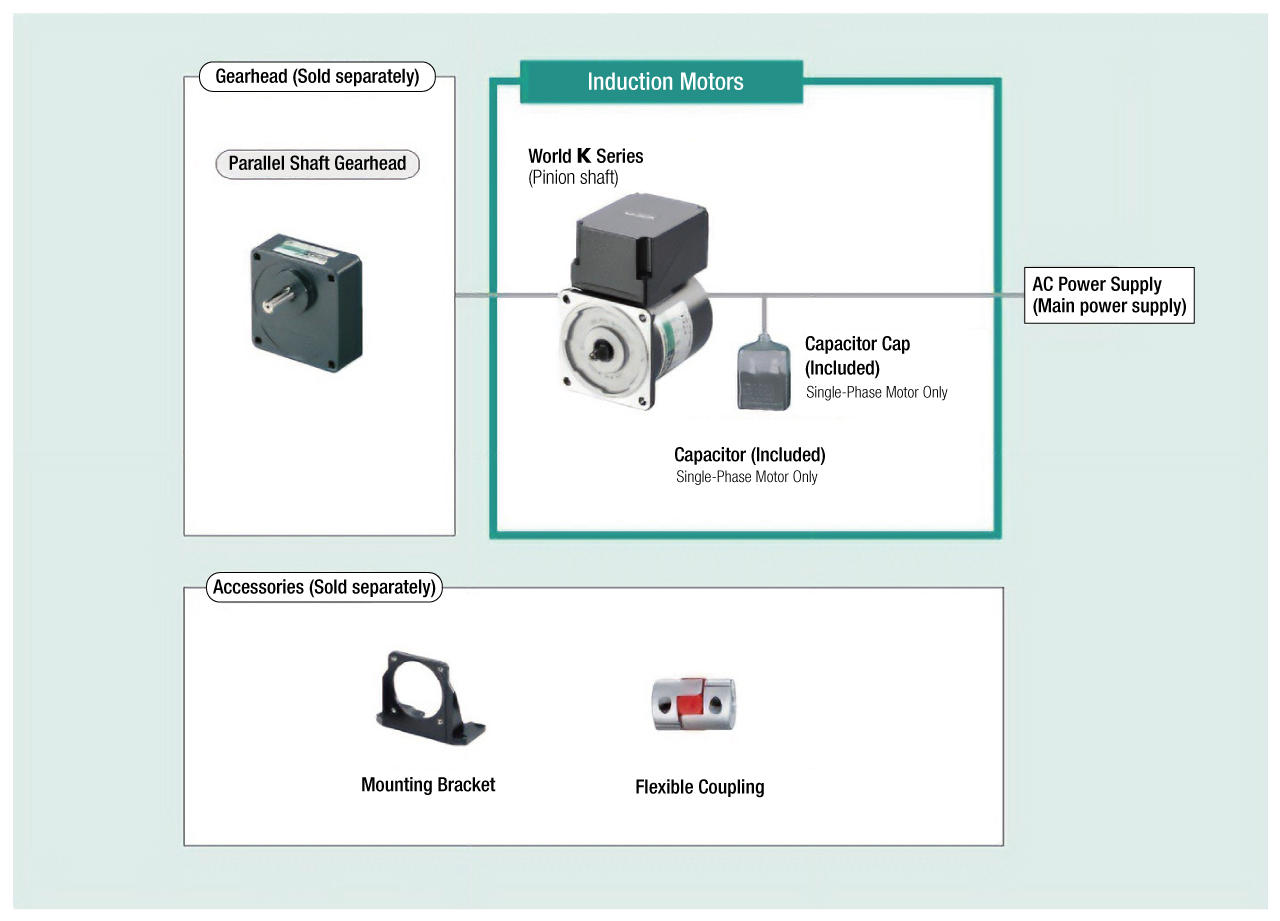

System Configuration

Cables and Accessories
