Reversible Motors K Series

0RK1A-C

0RK1A-C

Motor

  This product is currently no longer available for sale
Product Classification Product Name List Price List Price Shipping Date
Motor 0RK1A-C SGD 77 USD 62 Discontinued Product
(31.3.2024 discontinued)

Included

  • Motor : Motor, Capacitor, Operating Manual

Specifications

Data Download

Other Specifications

General Specifications

Item Specifications
Insulation Resistance After rated operation at normal ambient temperature and humidity, the measurement between the coils and the case is 100 MΩ min. using a 500 VDC megger.
Dielectric Strength After continuous rated operation at normal ambient temperature and humidity, no abnormalities were observed even with an application of 1.5 kV at 50 Hz or 60 Hz between the coils and the case for 1 minute.
Temperature Rise After rated operation at normal ambient temperature and humidity, the measurement value of the motor surface temperature rise is 60 °C max. (45 °C max. for motors with fans) using the thermometer method.
Thermal Class 120(E)
Operating Ambient Temperature -10~+50 °C (Non-freezing)
Operating Ambient Humidity 85 % max. (Non-condensing)

Permissible Radial Load and Permissible Axial Load of Round Shaft Type

Permissible Radial Load

Motor Permissible Radial Load N
Frame Size □ (mm) Output Shaft Diameter φ (mm) From Shaft End
10 mm
From Shaft End
20 mm
42 5 40 -
60 6 50 110
70 6 40 60
80 8 90 140
90 10 140 200
12 240 270

Permissible Axial Load

Avoid axial load as much as possible. If an axial load is unavoidable, keep it at half or less of the motor mass.

Radial Load and Axial Load

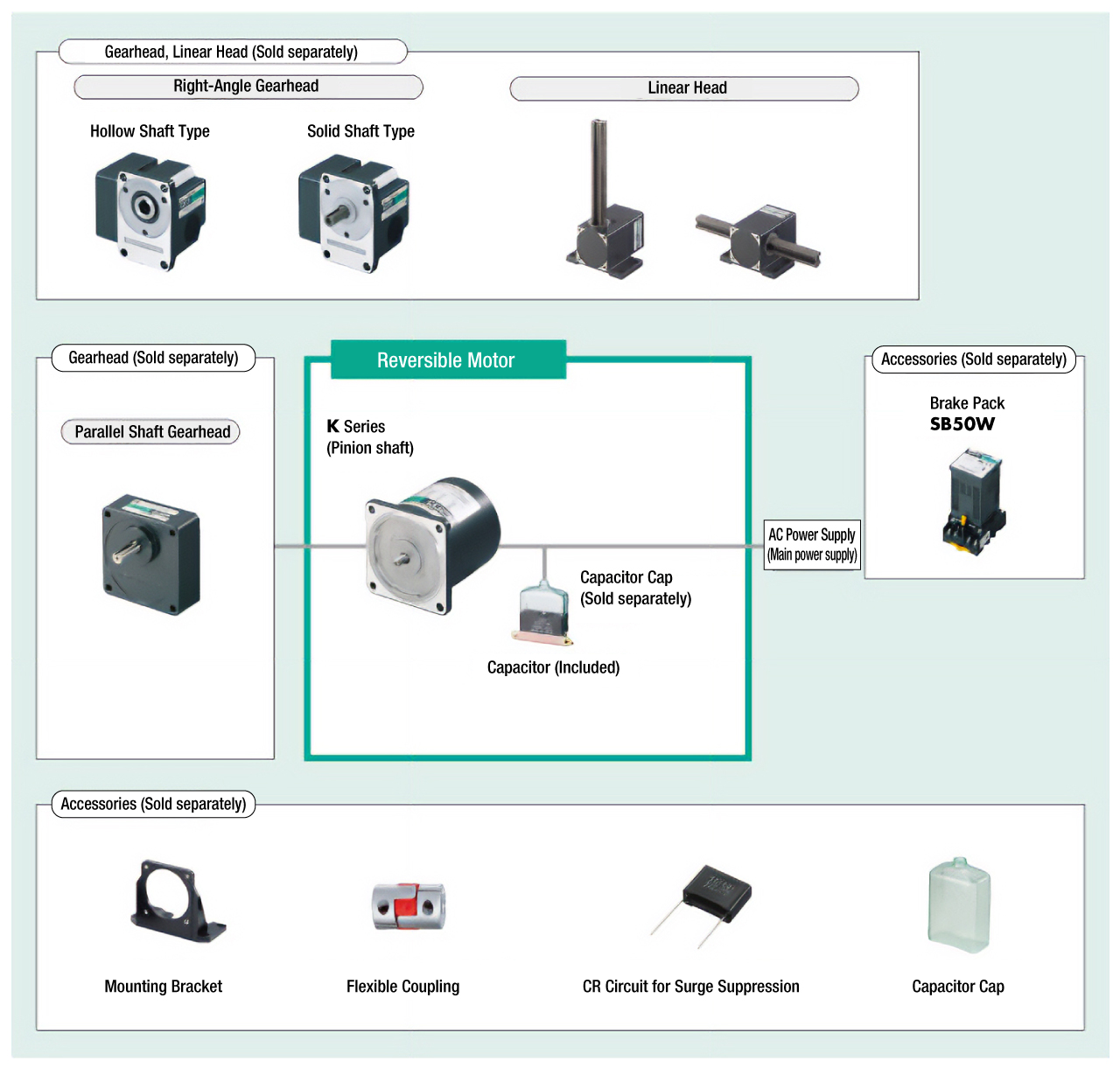

System Configuration

System Configuration

Related Products

Brake Pack

Products Features
SB50W Series
SB50W Series
Features

This is a brake pack that enables instantaneous stopping, bidirectional rotation, and brake control of the motor, all in 1 unit.

This brake pack can increase the safety of equipment through the thermal protector open detection function.

In addition, alarm resetting by external signals is now possible, making it easier to use.


  • Supports Wide Voltage Range (100-230 VAC)
  • 48 mm × 48 mm DIN size
  • Conforms to Safety Standards
  • Compatible with 1 W~90 W Motors
  • Can Switch Sink/Source Logic
