Brushless Motor BLS Series Product Line

Motor

Output Shaft Type	Frame Size [mm]	Output Power [W]	Gearhead Gear Ratio	Speed Control Range [r/min]
Parallel shaft gearhead	110	750	5~50	100~4000
Hollow shaft flat gearhead	-	750	5~50	100~4000
Round shaft type	104	750	-	100~4000
Round shaft type with key	104	750	-	100~4000

Driver

Type	Power Supply Voltage [V]
Simple type	Single-phase/Three-phase 200-240

Motor

Standard Type (AC motor compatible)

Output Shaft Type	Frame Size [mm]	Output Power [W]	Gearhead Gear Ratio	Speed Control Range [r/min]
Parallel shaft gearhead	80	25	3~180	100~2000
	90	40
	90	90

High-Strength, Long Life Type

Output Shaft Type	Frame Size [mm]	Output Power [W]	Gearhead Gear Ratio	Speed Control Range [r/min]
Parallel shaft gearhead	60	30	5~200	100~4000
	80	60
	90	120
Hollow shaft flat gearhead	60	30
	80	60
	90	120

Round shaft type

Output Shaft Type	Frame Size [mm]	Output Power [W]	Speed Control Range [r/min]
Round Shaft Type	60	30	100~4000
	80	60
	90	120

Driver

Type	Output Power of Applicable Motor [W]	Power Supply Voltage [V]

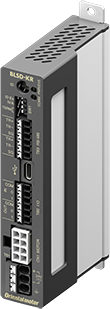

RS-485 communication type	25~120	24 DC
Simple type	25~120	24 DC
