Other Accessories: Motor/Driver Cover
A protective cover for Oriental Motor's products.

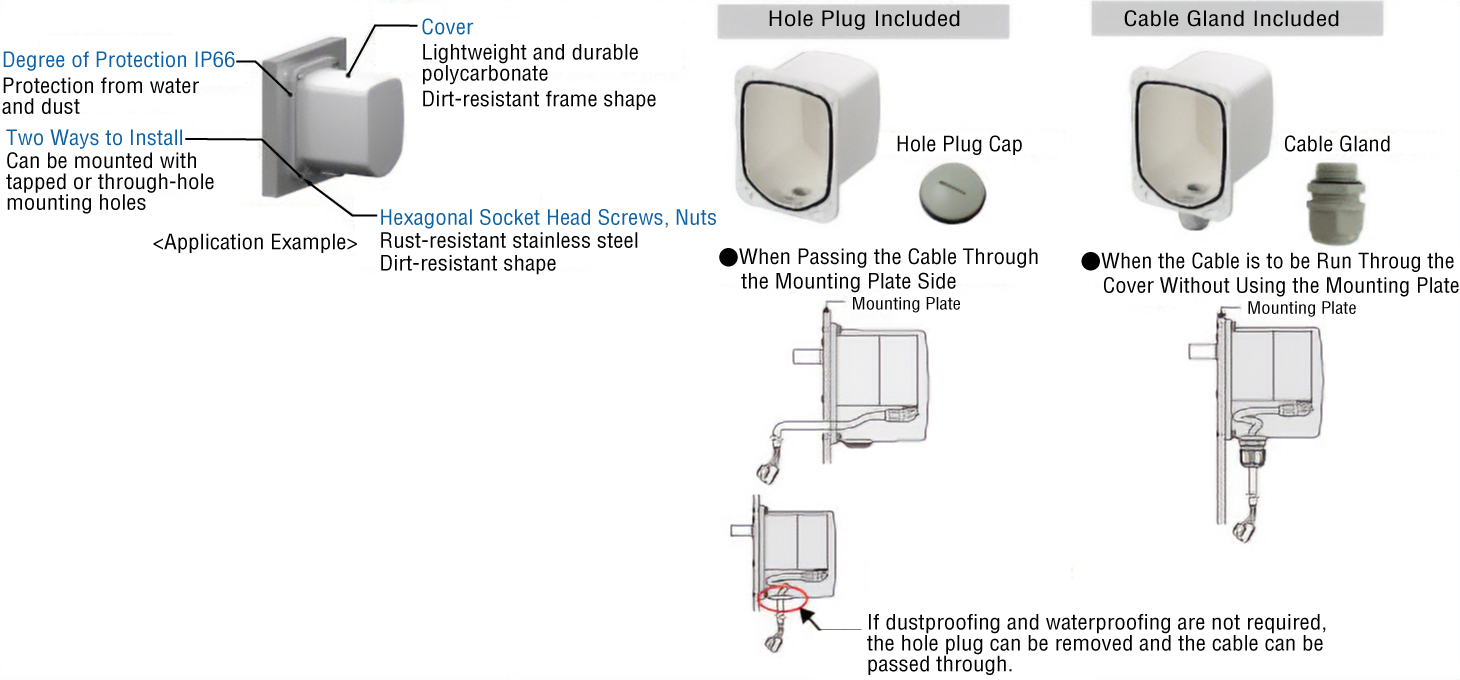

Motor Cover
Features
This cover protects the motor from water and dust.
Complies with degree of protection IP66 specifications.
After the motor is installed, the cover can be mounted.
Applicable Product
| Brushless Motors | Rated Output Power | Motor Type | Output Shaft Type |
|---|---|---|---|
| Series | |||
| BMU Series | 30 W, 60 W, 120 W | Connector Type | Parallel Shaft Combination Type (Connection cable outlet in output shaft direction only) |
| Round Shaft Type | |||
| Standard Type (IP40 rating) IP65 Rating |
Parallel Shaft Combination Type | ||
| Round Shaft Type | |||
| BLE2 Series* | 30 W, 60 W, 120 W | － | Parallel Shaft Combination Type (Connection cable outlet in output shaft direction only) |
| Round Shaft Type |
- *Not available for electromagnetic brake types.

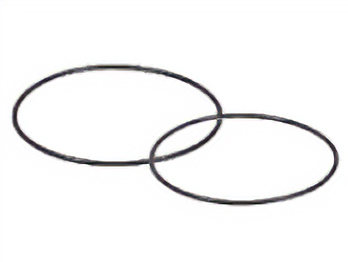

Gaskets for Replacement
| Product Name | |
|---|---|
2 unit set |
PCMP5 |
- *Oriental Motor recommends replacement after 1 year.
Dust and Water Resistant Type Front Cover
Features
Complies with degree of protection IP64 specifications. Can also be used to prevent accidental operation of the front panel.
It can be used either with the right or left side open.
- *Cannot be used with mounting brackets for circuit products (product names: MAD□, MAF□).

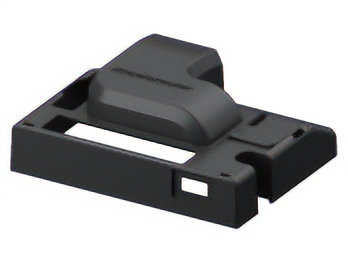

Driver Cover
Features
Covers for protecting the driver. Complies with degree of protection IP20.
- *PADC-CVD2 is IP10 compliant when the cover for the setting SW is open
- It can be mounted easily without tools.
- The driver's setting switch can be operated and checked even when the cover is mounted.
- Can be used with DIN rail mounting bracket (sold separately).
For CVD Series (Right-angle type with mounting plate)
| Driver Cover | Applicable Product | ||||||
|---|---|---|---|---|---|---|---|
| Product Name | For 2-Phase Stepper Motors | For 5-Phase Stepper Motors | |||||
| Pulse Input Type |
RS-485 Communication Type |
Pulse Input Type |
Fully Closed-Loop Control Type |
RS-485 Communication Type |
SC Type | ||
|
PADC-CVD2 | CVD205BR-K CVD206BR-K CVD215BR-K CVD223BR-K CVD223FBR-K CVD223F2BR-K CVD228BR-K CVD242BR-K CVD245BR-K |
CVD2BR-KR | CVD503BR-K CVD507BR-K CVD512BR-K CVD514BR-K CVD518BR-K CVD524BR-K CVD528BR-K CVD538BR-K |
CVD5BR-KF | CVD5BR-KR | CVD512BR-KSC CVD518BR-KSC CVD524BR-KSC |
Mounting Methods
-
①
-
②
- *For RS-485 communication type, insert the side connector first before mounting.
For CVD Series Multi-Axis Type EtherCAT Compatible (Right-angle type with mounting plate)
| Driver Cover | Applicable Products | |
|---|---|---|
| Product Name | For 2-Phase/5-Phase Stepper Motors | |
| Multi-Axis Type | ||
|
PADC-CVD4ARED | CVD4ABR-KED |

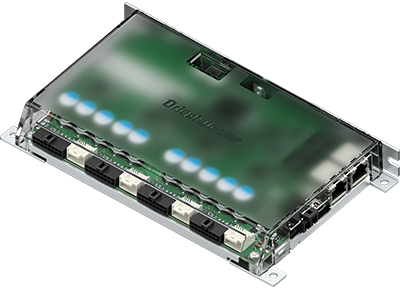

Mounting Example
For BLH Series
| Driver Cover | Applicable Product | ||||
|---|---|---|---|---|---|
| Product Name | Analog setting type | Digital setting type | RS-485 Communication Type | ||
|
PADC-BLH2D | BLH2D15(H)-K BLH2D30(H/DH)-K BLH2D50(H/DH)-K |
BLH2D15(H)-KD BLH2D30(H/DH)-KD BLH2D50(H/DH)-KD |
BLH2D15(H)-KR BLH2D30(H/DH)-KR BLH2D50(H/DH)-KR |
|

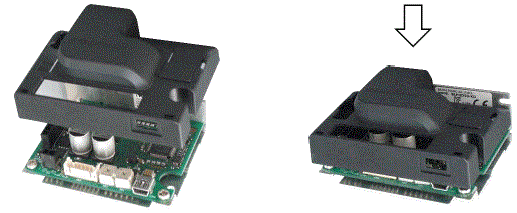

Mounting Methods
- *Use the driver following the operating manual for the driver.
Put it over the driver and fit it into place. No tools are required.
Front Cover
This prevents the speed from changing due to accidental contact or similar issues.
- *Installation of the front cover does not meet waterproof specification. Additionally, this product cannot be used with mounting brackets for circuit products (Product Name: MAFP05□).
| Product Name | Applicable Product | |
|---|---|---|
| Speed Control Motors | ||
|
PAFC02 | US Series |
