Mounting Brackets: Mounting Brackets for Circuit Products (for DIN rail installation)

• αSTEP, Electric Actuators
• Stepper Motors
• Brushless Motors
• AC Speed Control Motors

αSTEP, Electric Actuators

AC Input: For AZ Series and AZ Series Equipped Electric Actuator Drivers

Applicable Driver Product Name	Mounting Bracket Product Name		Features
AZD	MADP06		Fix Driver to 35 mm Wide DIN Rail Screw-Fixing Type, No Need for Side-Removal Fittings *When using MADP06, use it at an ambient temperature of 40 °C max. regardless of the driver's rating.

DC Input: For AZ Series and AZ Series Mounted Electric Actuator mini Drivers

Applicable Driver Product Name	Mounting Bracket Product Name		Features

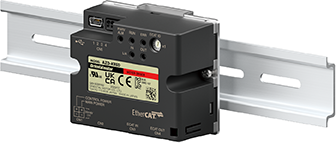

AZD-KR2D	MADP08		Fix Driver to 35 mm Wide DIN Rail One-Touch Fixing Without Tools
AZD-KRED AZD-KREP AZD-KREN AZD-KRPN AZD-KRX	MADP08W

AC Input: For AR Series and AR Series Equipped Electric Actuator Drivers

Applicable Driver Product Name	Mounting Bracket Product Name		Features
ARD	MADP06		Fix Driver to 35 mm Wide DIN Rail Screw-Fixing Type, No Need for Side-Removal Fittings *When using MADP06, use it at an ambient temperature of 40 °C max. regardless of the driver's rating.

Stepper Motors

AC Input: For RKⅡ Series Drivers

Applicable Driver Product Name	Mounting Bracket Product Name		Features
RKSD	MADP02		Fix Driver to 35 mm Wide DIN Rail Screw-Fixing Type, No Need for Side-Removal Fittings

DC Input: For CVD Series Drivers

Applicable Driver Product Name	Mounting Bracket Product Name		Features
CVD5 CVD2 (without mounting plate)	MADP01S1		Fix Driver to 35 mm Wide DIN Rail Screw-Fixing Type, No Need for Side-Removal Fittings
CVD5 CVD2 (with mounting plate)	MADP07

DC Input: For CRD Drivers

Applicable Driver Product Name	Mounting Bracket Product Name		Features
CRD51□□P (without mounting plate)	MADP01S1		Fix Driver to 35 mm Wide DIN Rail Screw-Fixing Type, No Need for Side-Removal Fittings
CRD51□□PB (with mounting plate)	MADP03

DC Input: For CMD Drivers

Applicable Driver Product Name	Mounting Bracket Product Name		Features
CMD	MADP01		Fix Driver to 35 mm Wide DIN Rail Screw-Fixing Type, No Need for Side-Removal Fittings

Brushless Motors

AC Input: For BMU Series Drivers

Applicable Driver Product Name	Mounting Bracket Product Name		Features
BMUD (for 30 W, 60 W, 120 W)	MADP05-15		Fix Driver to 35 mm Wide DIN Rail Screw-Fixing Type, No Need for Side-Removal Fittings *Cannot be used with dust and water resistant type front covers PCF12, PCF12-B, and PCF15-B.
BMUD (for 200 W and 400 W)	MADP05-12B

AC Input: For BLE2 Series and BXⅡ Series Drivers

Applicable Driver Product Name	Mounting Bracket Product Name		Features
BLE2D (BLE2 series)	MADP02		Fix Driver to 35 mm Wide DIN Rail Screw-Fixing Type, No Need for Side-Removal Fittings
BXSD (BXII series)

AC Input: For BLE Series Drivers

Applicable Driver Product Name	Mounting Bracket Product Name		Features
BLED	PADP03		Fix Driver to 35 mm Wide DIN Rail Resin plate with lightweight and flat design Lever Type, One-Touch Fixing

DC Input: For BLS Series Drivers

Applicable Driver Product Name	Mounting Bracket Product Name		Features

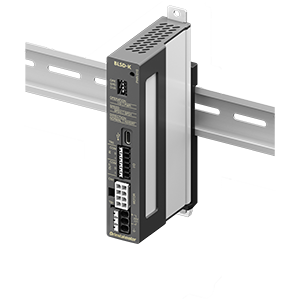

BLSD-K	PADP04	NEW	Fix Driver to 35 mm Wide DIN Rail Lever Type, One-Touch Fixing

DC Input: For BLH Series Drivers

Applicable Driver Product Name	Mounting Bracket Product Name		Features
BLH2D (for 15 W, 30 W, 50 W)	MADP01		Fix Driver to 35 mm Wide DIN Rail Screw-Fixing Type, No Need for Side-Removal Fittings
BLHD (for 100 W)	MADP02

AC Speed Control Motors

AC Input: For US2 Series and US Series Controllers

Applicable Driver Product Name	Mounting Bracket Product Name		Features
US2D (US2 Series)	MADP05-15		Fix Driver to 35 mm Wide DIN Rail Screw-Fixing Type, No Need for Side-Removal Fittings *Cannot be used with dust and water resistant type front covers PCF12 and PCF12-B.
USP (US Series)	MADP05-12

---
