Cables: For US2 Series

for US2 Series
Number in Illustration Cable Name
[1] Connection Cable
Flexible Connection Cable
  • *Use the flexible cables for applications where cables are bent. Click here for note on use of flexible cables
Number in Illustration Cable Name
[2] AC Power Supply Cable
  • → Click here for cable product line

Connection Cable

This cable can be used to connect the motor to the speed controller.

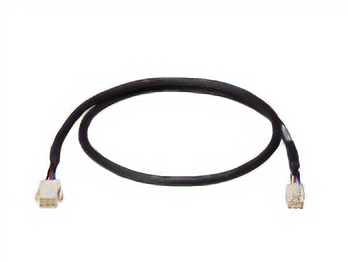

[1] Connection Cables, Flexible Connection Cables

Length (m) Connection Cable Flexible Connection Cable
Product Name Product Name
[1] Connection Cables, Flexible Connection Cables
1 CC01SC CC01SCR
2 CC02SC CC02SCR
3 CC03SC CC03SCR
5 CC05SC CC05SCR
10 CC10SC CC10SCR

Note on Use of Flexible Cables

Other Cables

This cable can be used to connect the driver and controller.

[2] AC Power Supply Cables

Cable that connects the speed controller to the power supply. Cables are available with or without a power supply plug.

Product Name Length
(m)		 Product Line Power Supply Voltage
[2] AC Power Supply Cables
CC02AC02P2 2 Plug included Single-Phase 100 VAC
CC02AC02N2 2 Plug not included Single-Phase 200 VAC
Single-Phase 110/115 VAC
Single-Phase 220/230 VAC

Cable Note When Wiring Flexible Cable

Do not bend the cable at the connector. Stress applied to the connectors and terminals causes poor contact and disconnection.

How to Fix the Cable

Fix the connector part in 2 places to prevent it from moving.

Fix the connector part in 2 places to prevent it from moving.

Wiring Length and Bending Radius of the Cable

Wiring should be installed at an appropriate length, so that cables are not pulled during movement.
In addition, the bending radius (R) should be 6 times the cable diameter min.

Wiring should be installed at an appropriate length, so that cables are not pulled during movement.

Interference of the Cable

Wire the cables in the cable holder without bringing them into contact with each other. This will add stress to the cable, and cause it to break prematurely. Please check note on cable holders carefully before use.

Cable Kinks

◇Please wire without kinks in the cable. Kinking in a twisted state can cause premature disconnection. After wiring, confirm that there are no kinks in the cable, using the print on the cable surface as a reference.
