Cables: For 2-Phase/5-Phase Stepper Motor PKP Series/CVD Series Multi-Axis Type Driver

Number in Illustration	Cable Name
[1]	Connection Cable Motor Side
[2]	Connection Cable Driver Side
[3]	Main Power Supply Cable
[4]	Control Power Supply Cable
[5]	I/O Signal Cable With Connector Type
[5]	I/O Signal Cable General-Purpose Type

Connection Cable

There are 2 types of connector shapes. Select the cable suitable for each shape.

Lead wire type connection cable with a connector crimped, convenient for connecting connector-coupled type motors.

2-Phase Stepper Motor

Product Name	Applicable Products		Length (m)
Product Name	Frame Size	Type	Length (m)
LC2B06A	28 mm	Standard type Standard type with encoder Standard type with electromagnetic brake High-resolution type High-resolution type with encoder SH geared type SH geared type with encoder CS geared type	0.6
LC2B10A	28 mm		1
LC2B06B	35 mm	Standard type Standard type with encoder Standard type with electromagnetic brake	0.6
LC2B10B	35 mm		1
LC2B06B	42 mm^*1	Standard type Standard type with electromagnetic brake High-resolution type High-resolution type with encoder High-resolution type with electromagnetic brake	0.6
LC2B10B	42 mm^*1		1
LC2B06C	56.4 mm^*1	Standard type Standard type with electromagnetic brake High-resolution type High-resolution type with encoder High-resolution type with electromagnetic brake	0.6
LC2B10C	56.4 mm^*1		1
LC2B06E	42 mm^2 50 mm 56.4 mm^2 60 mm	Standard type Standard type with encoder Standard type with electromagnetic brake High-resolution type High-resolution type with encoder CS geared type SH geared type SH geared type with encoder	0.6
LC2B10E	42 mm^2 50 mm 56.4 mm^2 60 mm		1
LC2B06E	42 mm 51 mm	Flat type Flat type with encoder Flat harmonic geared type Flat harmonic geared type with encoder	0.6
LC2B10E	42 mm 51 mm		1
LC2B10G	13 mm	Standard type	1

5-Phase Stepper Motor

Product Name	Applicable Products		Length (m)
Product Name	Frame Size	Type	Length (m)
LC5N06A	20 mm 28 mm 30 mm	Standard type Standard type with encoder High-resolution type High-resolution type with encoder TH geared type PS geared type PN geared type Harmonic geared type	0.6
LC5N10A	20 mm 28 mm 30 mm		1
LC5N06B	42 mm^*1	Standard type High-resolution type High-resolution type with encoder TH geared type PS geared type PN geared type Harmonic geared type	0.6
LC5N10B	42 mm^*1		1
LC5N06C2	60 mm	High-resolution type High-resolution type with encoder TH geared type PS geared type PN geared type Harmonic geared type	0.6
LC5N10C2	60 mm		1
LC5N06E	42 mm^*2 56.4 mm 60 mm	Standard type Standard type with encoder TS geared type	0.6
LC5N10E	42 mm^*2 56.4 mm 60 mm	Standard type Standard type with encoder TS geared type	1

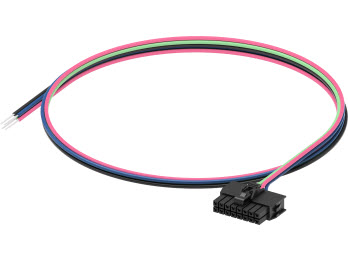

Cable can be used to connect the driver and controller.

Connection cable with a connector on the driver side.

Product Name	Applicable Products	Motor Type	Length (m)
LCD06CA-2M	2-Phase stepper motor PKP Series	Standard type	0.6
LCD06CA-2ME		Standard type with encoder
LCD06CA-2MB		Standard type with electromagnetic brake
LCD06CA-5M	5-Phase stepper motor PKP Series	Standard type
LCD06CA-5ME	5-Phase stepper motor PKP Series	Standard type with encoder
LCD06CA-5MB	5-Phase stepper motor PK Series	Standard type with electromagnetic brake

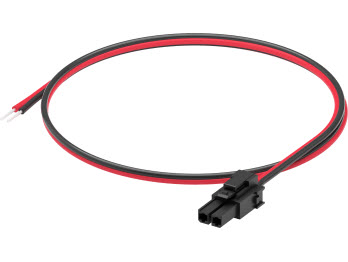

	Product Name	Length (m)
	LC02D06C	0.6

	Product Name	Length (m)
	LC02D06D	0.6

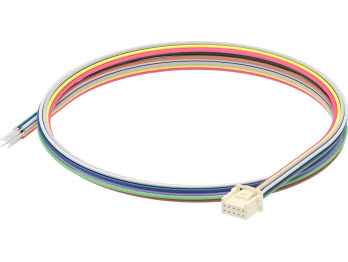

Cable for connecting the driver to the host controller.

	Product Name	Length (m)
	LCD06CA-S	0.6
