Cables: For BLV Series

Cables for BLV Series
Number in Illustration Cable Name
[1] Flexible Connection Cable
Flexible Connection Cable for Electromagnetic Brake Motor
[2] I/O Signal Cable Connector Type
Number in Illustration Cable Name
[3] RS-485 Communication Cable
[4] FLEX Communication Cable: General-Purpose Type
FLEX Communication Cable: Dedicated Type

[1] Flexible Connection Cable (for 200 W and 400 W types)

Connection cable to connect the motor and driver. The maximum extension distance is 3.5 m.
Use in applications where the cable is repeatedly bent and stretched.

  • * Cannot be used with 100 W type.

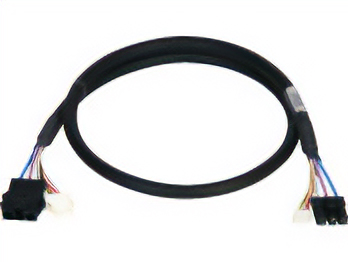

Flexible Connection Cable

Product Name Length (m)
Flexible Connection Cable
CC01BLV2R 1
CC02BLV2R 2
CC03BLV2R 3

Note on Use of Flexible Cables

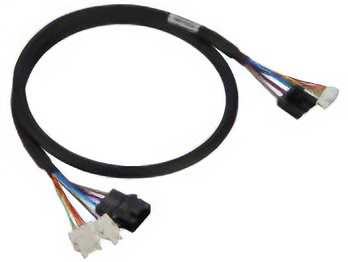

Flexible Connection Cable for Electromagnetic Brake Motor

Product Name Length (m)
Flexible Connection Cable for Electromagnetic Brake Motor
CC01BLV2MR 1
CC02BLV2MR 2
CC03BLV2MR 3

Note on Use of Flexible Cables

[2] I/O Signal Cable Connector Type

Cable used to connect the driver to the programmable controller, etc.

Product Name Length (m) Number of Cores
[2] I/O Signal Cable Connector Type
CC15D1 1 15
CC15D2 2 15

[3] RS-485 Communication Cable

Cable connects the driver to the network converter.

Product Name Length (m)
[3] RS-485 Communication Cable
CC002-RS4 0.25

[4] FLEX Communication Cable

This cable is convenient for connecting FLEX compatible products to various equipment that is Modbus-controlled by RS-485 communication.
A general-purpose type with unbundled wires at one end of the cable and a dedicated type that can connect directly to the programmable display from Schneider Electric Japan Holdings Ltd. are available.

General-Purpose Type

The general-purpose type comes with a termination resistor.

Product Name Length
(m)
Flex Communication Cable
CC02FLT 2
CC05FLT 5

Dedicated Type

The dedicated type cable has an integrated termination resistor.

Product Name Applicable Interfaces Length
(m)
FLEX Communication Cable
CC02FLT2 Schneider Electric Japan Holdings Ltd.
For COM1 of GP3000 Series
LT3300 Series
For COM1, COM2, RS-485 of GP4000 Series		 2
CC05FLT2 5
FLEX Communication Cable
CC02FLT5 Schneider Electric Japan Holdings Ltd.
For LT4000M Series		 2
CC05FLT5 5

Cable Note When Wiring Flexible Cable

Do not bend the cable at the connector. Stress applied to the connectors and terminals causes poor contact and disconnection.

How to Fix the Cable

Fix the connector part in 2 places to prevent it from moving.

Fix the connector part in 2 places to prevent it from moving.

Wiring Length and Bending Radius of the Cable

Wiring should be installed at an appropriate length, so that cables are not pulled during movement.
In addition, the bending radius (R) should be 6 times the cable diameter min.

Wiring should be installed at an appropriate length, so that cables are not pulled during movement.

Interference of the Cable

Wire the cables in the cable holder without bringing them into contact with each other. This will add stress to the cable, and cause it to break prematurely. Please check note on cable holders carefully before use.

Cable Kinks

◇Please wire without kinks in the cable. Kinking in a twisted state can cause premature disconnection. After wiring, confirm that there are no kinks in the cable, using the print on the cable surface as a reference.
