Wiring Support Component Connector Cover

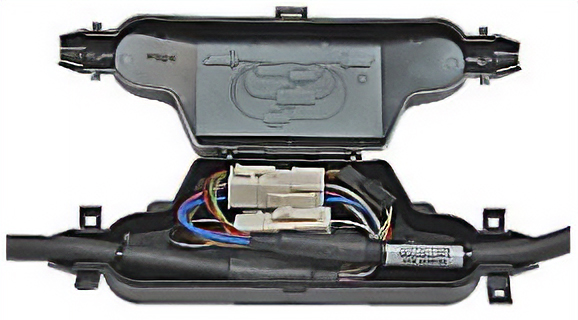

Cover to protect the connector joint of the motor cable.
Connector Cover
Features
| External View | Application Example | Product Name |
|---|---|---|
 |
 |

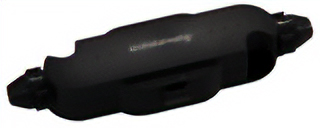

MAC-D |
Specifications
| MAC-D | |
|---|---|
| Applicable Cable Diameter | Max. φ10.5 mm |
| Degree of Protection | Equivalent to IP20 |

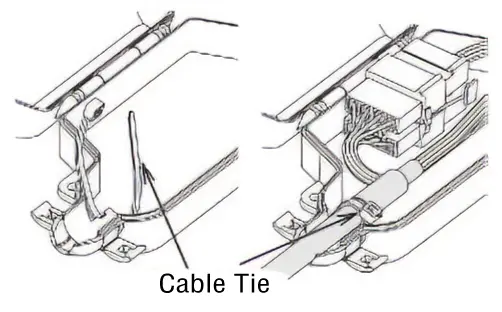

| Flammability Classification | V-2 (Cable tie: V-2) |
| Operating Ambient Temperature | -10 °C~+50 °C |
| Materials | Polyamide |

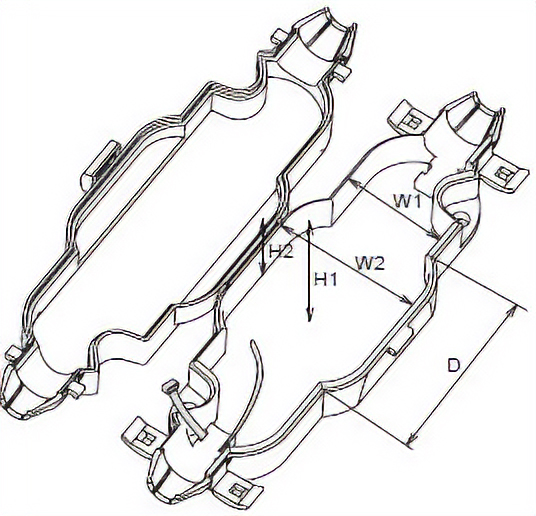

| Housing Dimensions |
W1: 26.5 mm  |
Applicable Products
| Classification | Series | |
|---|---|---|
| AC Speed Control Motors | US2 Series | |
| DSC Series | Standard Type | |
| Brushless Motors | BXII Series | Motor |
| Encoder | ||
| αSTEP | AZ Series (Excluding AZM14, AZM15, AZM24, and AZM26) |
Motor |
| Electromagnetic Brake | ||
| AR Series (Excluding AR14, AR15, AR24, and AR26) |
Motor | |
| Electromagnetic Brake | ||
| Stepper Motors (Motor/Driver) | RKII Series | Motor |
| Electromagnetic Brake | ||
| Servo Motors | NX Series | Motor |
| Electromagnetic Brake | ||
| Electric Linear Slides | EAS Series, EZS Series | |
| Electric Cylinders | EAC Series (Refer to equipped motors) | |
| Compact Linear Actuators | DRS2 Series (Refer to equipped motors) | |
| Rack-and-Pinion System | L Series (Refer to equipped motors) | |
| Hollow Rotary Actuators | DGII Series (except DG60) (Refer to equipped motors) | |
[Note]
