Wiring Support Component Connector - Terminal Block Conversion Unit

Uses a noise-resistant shielded cable. Ground wire with round terminal for easy shield grounding.

Applicable Products		Number of Positions	Product Name	Cable Length (m)
AZ Series		24 positions	CC24T05E	0.5
			CC24T10E	1
AR Series Built-in Controller Type RKII Series Built-in Controller Type		21 positions	CC21T05E	0.5
			CC21T10E	1
RKII Series Pulse Input Type		15 positions	CC15T05E	0.5
			CC15T10E	1

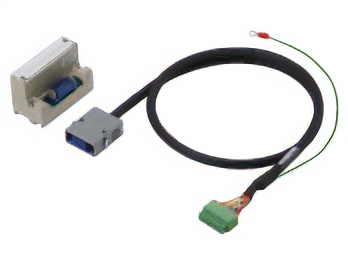

BLE2 Series		18 positions	CC18T05E	0.5
			CC18T10E	1

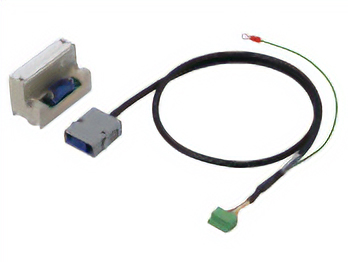

BMU Series (30 W, 60 W, 120 W)		9 positions	CC09T05E	0.5
			CC09T10E	1
BMU Series (200 W, 400 W)		12 positions	CC12T05E	0.5
			CC12T10E	1

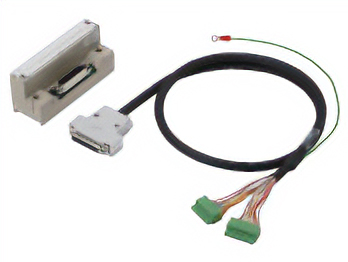

BXII Series		23 positions	CC23T05E	0.5
			CC23T10E	1
DSC Series		16 positions	CC16T05E	0.5
			CC16T10E	1

• Includes a signal name plate for easy, one-glance identification of driver signal names.
  Double-sided printing makes it possible to check the signal name even when the cover is opened or closed.
• Both DIN rail mount and screw mount are possible.
• Screw-up type used to prevent the product from falling even if the screw becomes loose.
• Crimp terminals can be used with both round and Y terminals.

Applicable Products		Number of Positions	Product Name	Cable Length (m)

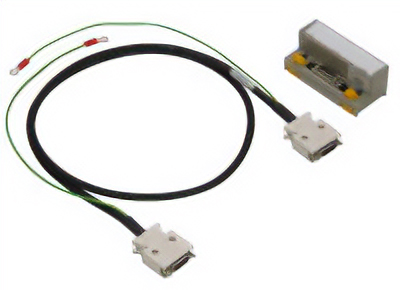

AR Series DeviceNet Compatible NX Series BLE Series CC-Link Compatible		20 positions	CC20T10E	1

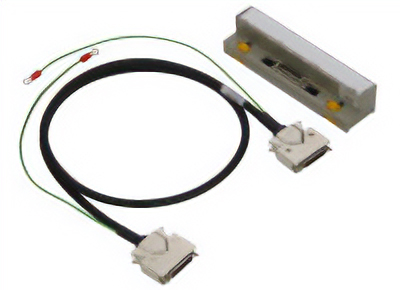

AR Series Pulse Input Type NX Series		36 positions	CC36T10E

• Includes a signal name plate for easy, one-glance identification of driver signal names.
  Double-sided printing makes it possible to check the signal name even when the cover is opened or closed.



• Can improve efficiency of wiring installations.
• Both DIN rail mount and screw mount are possible.
• Round terminals cannot be used.
