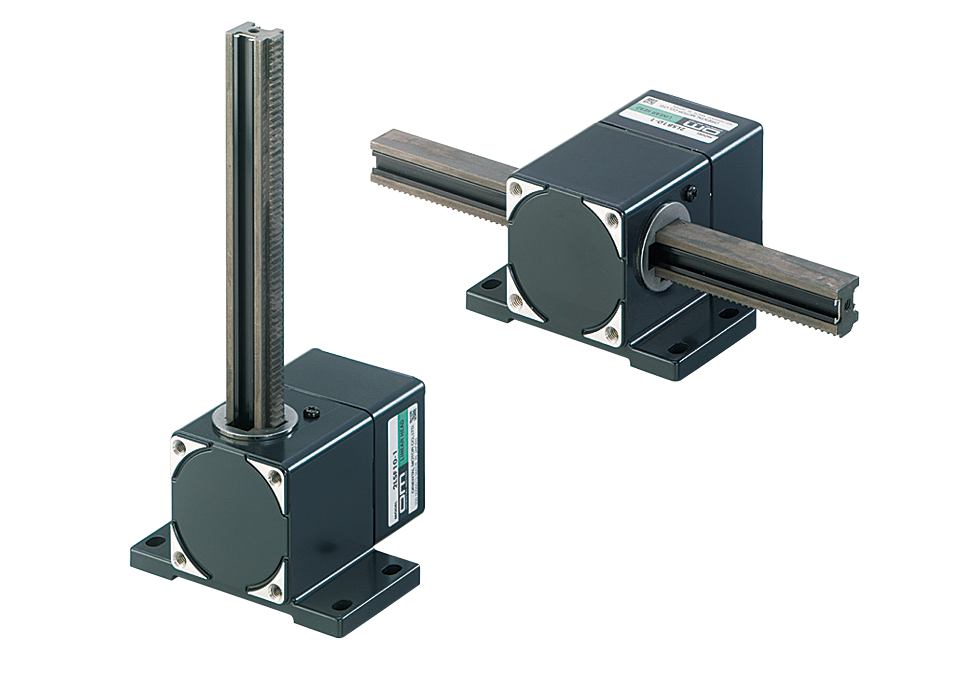

The new LS linear head, which produces linear motion by simply being assembled on an AC motor like a gearhead, is now available.
We offer a range of motors which match our customers’ needs and a wide variety of stroke variations.
In addition, by using limit switches (sold separately), stopping and reversing operations become simple.

Features | Linear Head "LS Linear Head"

Easy to Realize Linear Motion Mechanism

For a simple repetitive mechanism, a linear motion mechanism can be easily realized in either the horizontal or vertical direction.

High Thrust, Large Transportable Mass

The maximum transportable mass is approximately 1.5 times higher than that of conventional LH linear heads.

  • 100 kg (4LS type)
  • 30 kg (2LS type)
  • *Varies according to the basic speed.

Wide Range of Stroke Variations

You can choose the stroke that best suits your application.

  • 100 mm~1000 mm 10 types (4LS type)
  • 100 mm~800 mm 8 types (2LS type)

Limit Switch for Easy Back-and-Forth Operation

With the use of a dedicated limit switch (sold separately), back-and-forth motion and intermediate stops can be easily achieved.

Product Line

Supported Motors Series Upper Row: Motor frame size (mm)/Lower Row: Output power (W)
60 80
6 25
Reversible Motor K Series
World K Series
Electromagnetic Brake Motor K Series
World K Series
  • *Click here for combination with speed control motor
